80 DOAA KOP

Name: 80 DOAA KOP
Brand: Regal Rexnord
SKU: 80 DOAA KOP
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2300085

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Kop-Flex®

Type

Drop-Out Rough Stock Bore Spacer

Description

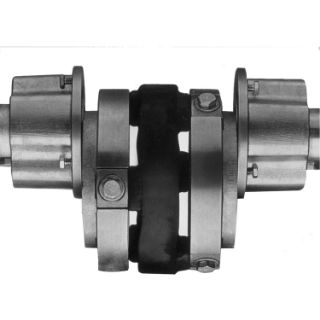

Wherever spacer type couplings are used for motor driven back pull-out pumps, AVS Pumps, Process Pumps and any application for a spacer type coupling. Over 117 shaft separation combinations are available using standard components. The Elastomeric™ drop out coupling provides for easy removal of the pump's back-pull out section keeping routine pump maintenance and down-time to a minimum. Upon removal of a few axial fasteners, the flexible coupling center section is easily inserted, or removed to gain pump access.

Kop-Flex® Elastomeric™ Resilient Coupling, Drop-Out Rough Stock Bore Spacer, 1-1/4 in Bore, 10-1/2 in OD, 13-3/16 in Overall Length, 9-7/16 in Dia Hub, 1-7/32 in Length Through Bore, 8190 in-lb Torque, 2800 rpm Maximum, -50 to 175 deg F

Application

Aggregate, Cement, Coal Power Generation, Food, HVAC, Marine, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper, Turbomachinery, Unit Handling, Water, Wastewater and Wind Power Generation Industries

Features

Non-lubricated design
Maintenance savings through easily replaceable rubber elements in the application, without moving the driving or driven equipment
Easy to assemble and operate in hot, wet, gritty tough environment
Widely used in hot strip mill roller table application
8 coupling size

Specifications

Bore Diameter:	1-1/4 in
Hub Size:	9-7/16 in Dia
Length Through Bore:	1-7/32 in
Maximum Speed:	2800 rpm
Outside Diameter:	10-1/2 in
Overall Length:	13-3/16 in
Temperature Rating:	-50 to 175 deg F
Torque Rating:	8190 in-lb
