80 ES FB KOP

Name: 80 ES FB KOP
Brand: Regal Rexnord
SKU: 80 ES FB KOP
Availability: OutOfStock

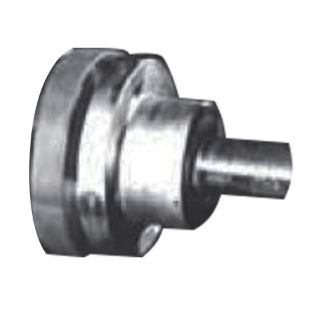

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2298065

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Kop-Flex®

Type

Finished Bore Single Spacer

Description

Spacer couplings are commonly used where a larger than-normal shaft separation is desired. This permits servicing of impellers, packing glands, seals, bearing and more. without disturbing the connected equipment. The two types of spacer coupling. Double spacer and single space vary only in the number of spacer hubs used and offer the user a wide variety of possible shaft separations.

Kop-Flex® Elastomeric™ Resilient Coupling, Finished Bore Single Spacer, 1-1/2 to 3-3/4 in Bore, 10-1/2 in OD, 10-3/8 in Overall Length, 9-7/16 in Dia Hub, 2-11/16 in Length Through Bore, 8190 in-lb Continuous/24270 in-lb Peak Torque, 2000 rpm Not Balanced Maximum, -50 to 175 deg F

Application

Aggregate, Cement, Coal Power Generation, Food, HVAC, Marine, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper, Turbomachinery, Unit Handling, Water, Wastewater and Wind Power Generation Industries

Features

Non-lubricated design
Maintenance savings through easily replaceable rubber elements in the application, without moving the driving or driven equipment
Easy to assemble and operate in hot, wet, gritty tough environment
Widely used in hot strip mill roller table application
8 coupling size

Specifications

Bore Diameter:	1-1/2 to 3-3/4 in
Hub Size:	9-7/16 in Dia
Length Through Bore:	2-11/16 in
Maximum Speed:	2000 rpm Not Balanced
Outside Diameter:	10-1/2 in
Overall Length:	10-3/8 in
Temperature Rating:	-50 to 175 deg F
Torque Rating:	8190 in-lb Continuous/24270 in-lb Peak
