800 1.71/1 A,B ST HUB

Name: 800 1.71/1 A,B ST HUB
Brand: Hub City
SKU: 800 1.71/1 A,B ST HUB
Price: 6,242.11 USD
Availability: OutOfStock

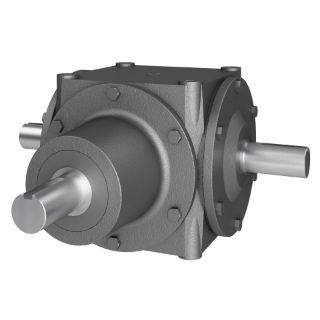

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-59336

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$6,242.11 / EA

Description

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style A B, Series: 800, 1.71:1 Gear Ratio, 33 hp, Shaft Input, Shaft Output, 1-1/2 in Dia x 3-1/16 in L Input, 1-1/2 in Dia x 3-3/32 in L Output, 672.5 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 3100 in-lb, 11-1/2 in Centre Distance, 3/8 x 3/16 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 16-3/32 in W x 15-21/32 in D x 8-3/16 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	11-1/2 in
Country of Origin:	US
Dimensions:	16-3/32 in W x 15-21/32 in D x 8-3/16 in H
Efficiency:	97.5 %
Gear Ratio:	1.71:1
Horsepower:	33 hp
Input Maximum Speed:	1150 rpm
Input Size:	1-1/2 in Dia x 3-1/16 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input
Lubrication Type:	Conventional Oil
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	672.5 rpm
Output Size:	1-1/2 in Dia x 3-3/32 in L
Output Type:	Shaft
Series:	800
Torque Rating:	3100 in-lb
