800-5MGT-25 GAT

Picture of 800-5MGT-25 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
800-5MGT-25
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$62.48 / EA

Description

Brand Name

Gates®

Description

The PowerGrip® GT®3 belt has twice the load carrying capacity of its predecessor HTD®. In addition, less width is required compared to HTD®, allowing lighter, more compact drives.

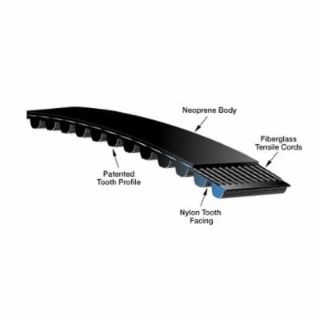

Gates® PowerGrip® GT®3 Synchronous Belt, Series: 9400, 160 Teeth, 5 mm Pitch, 800 mm Overall Length, 25 mm Width, Neoprene, Fiberglass Reinforced Material

Application

HVAC, Office Machines, Machine Tools, Hand Power Tools, Postage Handling, Spindle Drives, Food Processors, Sewing Machines, Robotics, Linear and Light Package Conveyor

Features

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • PowerGrip® GT®3 exceeds HTD® in tooth ratchet resistance
  • Gates® patented tooth profile is designed for use with a specific sprocket groove profile
  • The sprocket groove-belt tooth combinations increases capacity, while improving registration
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor as compared to roller chain drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • PowerGrip® GT®3 belt and GT®2 sprocket combinations match or exceed the positional accuracy of PowerGrip® timing belt/pulley systems

Specifications

Country of Origin:US
Material:Neoprene
Number of Teeth:160
Overall Length:800 mm
Pitch:5 mm
Reinforced Material:Fiberglass
Series:9400
Width:25 mm

Products Specifications

Brand Name
Gates
Pitch
5MGT
