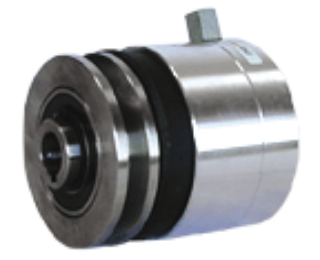

Actual Product May Vary From Image

800015 NEX

Name: 800015 NEX
Brand: Nexen
SKU: 800015 NEX
Price: 483.00 USD
Availability: OutOfStock

Nexen® Air Champ® 800015 Air Actuated/Spring Return Light Duty Open Single Actuator Tension Control Clutch, 51 in-lb Dynamic Torque, 0.201 cu-in New/0.63 cu-in Worn Out, 3600 rpm Max

Manufacturer: Nexen

Manufacturer part number: 800015

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$483.00

Qty:

Product Details

Brand Name

Nexen®

Type

Air Actuated/Spring Return Light Duty Open Single Actuator

Description

Rewind operations require smooth, consistent torque to wind roll of all types of materials. Continuous slip applications also need clutches to efficiently dissipate heat. Nexen® tension control clutches, with closely held flatness and finish tolerances, combined with specific friction materials provide ultimate web tension control.

Nexen® Air Champ® Tension Control Clutch, Air Actuated/Spring Return Light Duty Open Single Actuator, 51 in-lb Dynamic Torque, 0.201 cu-in New/0.63 cu-in Worn Out Air Volume, 3600 rpm Maximum, 5/8 in Bore, Black Oxide, 2.89 in OD x 3.51 in L Dimensions

Application

Tensioning Application

Standards

CE Certified | RoHS Compliant

Features

Precision friction interface for reduced torque pulsation at low differential rpm's
Light duty air cooled clutch for narrow range tension control applications

Specifications

Air Volume:	0.201 cu-in New/0.63 cu-in Worn Out
Bore Diameter:	5/8 in
Dimensions:	2.89 in OD x 3.51 in L
Finish:	Black Oxide
Maximum Speed:	3600 rpm
Torque Rating:	51 in-lb Dynamic
