800112 NEX

Rewind operations require smooth, consistent torque to wind roll of all types of materials. Continuous slip applications also need clutches to efficiently dissipate heat. Nexen® tension control clutches, with closely held flatness and finish tolerances, combined with specific friction materials provide ultimate web tension control.

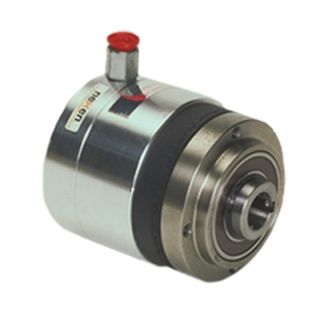

Nexen® Air Champ® Tension Control Clutch, Air Actuated/Spring Return Light Duty Open Single Actuator, 30 in-lb Dynamic Torque, 0.201 cu-in New/0.63 cu-in Worn Out Air Volume, 3600 rpm Maximum, 1/2 in Bore, Machined Aluminum, 2.89 in OD x 3.51 in L Dimensions
