800K30FMW24X10 AB

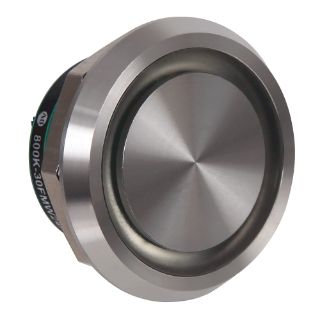

30.5mm Piezo Push Button
Manufacturer: Allen-Bradley
Manufacturer part number: 800K-30FMW24X10
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$164.00 / EA

Product Details

Brand Name

Allen-Bradley

Type

30mm Push Button Operator

Description

800K 30.5mm Piezo Push Button 24V AC/DC Illuminated White 1 NO

Standards

C-TICK, CCC, CE, CSA, CUL, UL

Features

Piezo

Specifications

Action:Momentary
Amperage Rating:200mA
Color:White
Connection:Screw
Contact Configuration:1 N.O.
Contact Rating:UL 508, General Use
Country of Origin:FR
Degree of Protection:IP69K
Illumination Type:LED
Material:316 Stainless Steel
Mounting:Panel
Operating Temperature:-25…50 °C (-13…122 °F)
Size:30mm
Sub Brand:800K
Voltage Rating:24V DC
