801419 NEX

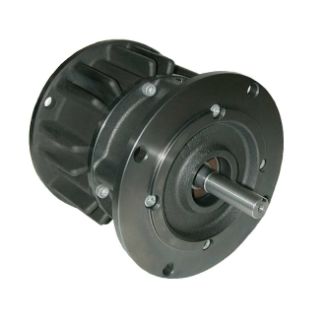

Nexen® Air Champ® 801419 Air Actuated IEC Enclosed Combination Flange/Foot Mounted Clutch/Brake, 33 N-m Brake/33 N-m Clutch Torque, 30.53 cc New/39.51 cc Worn Out Brake, 19.52 cc New/27.9 cc Worn Out Clutch, 1500 rpm Max, 6 bar Max Pressure
Manufacturer: Nexen
Manufacturer part number: 801419
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,697.00

Product Details

Brand Name

Nexen®

Type

Air Actuated IEC Enclosed

Description

FMCBE flange mounted clutch-brakes are designed for controlled starts and stops in hostile, dirty environments. Totally enclosed design prevents contaminants from interfering with operation of the units while keeping worn friction material from escaping into the environment. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 20 hp. Optional foot mount is available for belt drive applications. Optional input unit allows you to incorporate pulleys or couplings into your application.
Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated IEC Enclosed, 33 N-m Brake/33 N-m Clutch Torque, 30.53 cc New/39.51 cc Worn Out Brake, 19.52 cc New/27.9 cc Worn Out Clutch Air Volume, 1500 rpm Maximum, 6 bar Maximum, 19 mm Bore, 32 to 150 deg F, Black Enamel Paint, 199.6 mm Dia x 210.4 mm L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

Air engaged, clutch brake with optional input shaft and feet

Specifications

Air Volume:30.53 cc New/39.51 cc Worn Out Brake, 19.52 cc New/27.9 cc Worn Out Clutch
Bore Diameter:19 mm
Dimensions:199.6 mm Dia x 210.4 mm L
Finish:Black Enamel Paint
Maximum Pressure:6 bar
Maximum Speed:1500 rpm
Temperature Rating:32 to 150 deg F
Torque Rating:33 N-m Brake/33 N-m Clutch
