801441 NEX

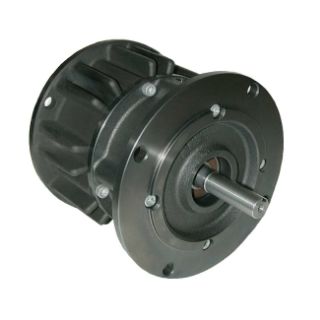

Nexen® Air Champ® 801441 Air Actuated NEMA C-Face Enclosed Combination Flange/Foot Mounted Clutch/Brake, 126 ft-lb Brake/114 in-lb Clutch Torque, 1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch, 1800 rpm Max
Manufacturer: Nexen
Manufacturer part number: 801441
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$961.00

Product Details

Brand Name

Nexen®

Type

Air Actuated NEMA C-Face Enclosed

Description

FMCBE flange mounted clutch-brakes are designed for controlled starts and stops in hostile, dirty environments. Totally enclosed design prevents contaminants from interfering with operation of the units while keeping worn friction material from escaping into the environment. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 20 hp. Optional foot mount is available for belt drive applications. Optional input unit allows you to incorporate pulleys or couplings into your application.
Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 126 ft-lb Brake/114 in-lb Clutch Torque, 1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 32 to 150 deg F, Black Oxide

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

  • If mounted to a reducer and high cycle rates consider the locking-key version to prevent output shaft/keyway problems
  • Air engaged, clutch brakes with optional input shaft and feet

Specifications

Air Volume:1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Temperature Rating:32 to 150 deg F
Torque Rating:126 ft-lb Brake/114 in-lb Clutch
