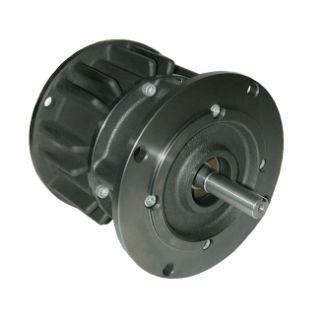

Actual Product May Vary From Image

801451 NEX

Name: 801451 NEX
Brand: Nexen
SKU: 801451 NEX
Price: 2,017.00 USD
Availability: OutOfStock

Nexen® Air Champ® 801451 Air Actuated/Spring Engaged IEC Enclosed Combination Flange/Foot Mounted Clutch/Brake, 10 N-m Brake/18 N-m Clutch Torque, 36.9 cc New/50.47 cc Worn Out Clutch, 1500 rpm Max, 6 bar Max Pressure

Manufacturer: Nexen

Manufacturer part number: 801451

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,017.00

Qty:

Product Details

Brand Name

Nexen®

Type

Air Actuated/Spring Engaged IEC Enclosed

Description

FMCBES flange mounted clutch-brakes come with a spring engaged brake and air engaged clutch. For applications where safety is a concern, this unit will engage the brake in the event of air pressure loss. All units available in either electro less nickel plating or black oxide coating. Meets NEMA standard 1.26.5 (IP54) for waterproof machines. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 1.5 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated/Spring Engaged IEC Enclosed, 10 N-m Brake/18 N-m Clutch Torque, 36.9 cc New/50.47 cc Worn Out Clutch Air Volume, 1500 rpm Maximum, 6 bar Maximum, 32 to 150 deg F, Black Oxide, 5.91 in Dia x 6.34 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

Spring engaged brake with optional input shaft and feet

Specifications

Air Volume:	36.9 cc New/50.47 cc Worn Out Clutch
Dimensions:	5.91 in Dia x 6.34 in L
Finish:	Black Oxide
Maximum Pressure:	6 bar
Maximum Speed:	1500 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	10 N-m Brake/18 N-m Clutch
