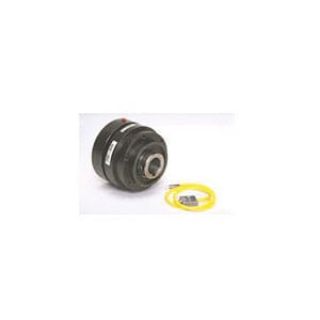

Actual Product May Vary From Image

801502 NEX

Name: 801502 NEX
Brand: Nexen
SKU: 801502 NEX
Price: 1,267.00 USD
Availability: OutOfStock

Nexen® 801502 Open Torque Limiter, 7/8 in Straight Bore, 4.56 in OD, 17.5 to 71.66 ft-lb Torque

Manufacturer: Nexen

Manufacturer part number: 801502

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,267.00

Qty:

Product Details

Brand Name

Nexen®

Type

Open

Description

Nexen® Torque Limiter, Open, Straight Bore, 7/8 in Bore Dia, 4.56 in Outside Dia, 5.28 in Overall Length, 17.5 to 71.66 ft-lb, 1800 rpm Maximum, 6.9 bar Maximum, 0.189 in Keyway, 35/40T, 40/30T, 50/24T, 60/21T Minimum Sprocket Teeth, Bare Machined Aluminum Air Chamber and Black Oxide Pilot

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted straight bore torque limiters
Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:	7/8 in
Bore Type:	Straight
Finish:	Bare Machined Aluminum Air Chamber and Black Oxide Pilot
Keyway Size:	0.189 in
Maximum Pressure:	6.9 bar
Maximum Speed:	1800 rpm
Minimum Sprocket Teeth:	35/40T, 40/30T, 50/24T, 60/21T
Outside Diameter:	4.56 in
Overall Length:	5.28 in
Torque Rating:	17.5 to 71.66 ft-lb
