801556 NEX

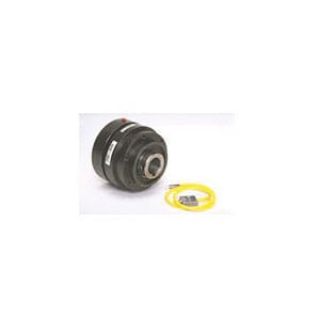

Picture of 801556 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
801556
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,008.00 / EA

Description

Brand Name

Nexen®

Type

Open

Description

Nexen® Torque Limiter, Open, Straight Bore, 2.188 in Bore Dia, 8.31 in Outside Dia, 7-3/4 in Overall Length, 100 to 558.33 ft-lb, 950 rpm Maximum, 6.9 bar Maximum, 1/4 in Keyway, 60/37T, 80/29T, 100/23T, 120/21T Minimum Sprocket Teeth, Bare Machined Aluminum Air Chamber and Black Oxide Pilot

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

  • Air engaged shaft mounted straight bore torque limiters
  • Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:2.188 in
Bore Type:Straight
Finish:Bare Machined Aluminum Air Chamber and Black Oxide Pilot
Keyway Size:1/4 in
Maximum Pressure:6.9 bar
Maximum Speed:950 rpm
Minimum Sprocket Teeth:60/37T, 80/29T, 100/23T, 120/21T
Outside Diameter:8.31 in
Overall Length:7-3/4 in
Torque Rating:100 to 558.33 ft-lb
