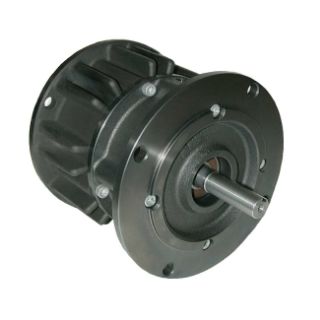

Actual Product May Vary From Image

801624 NEX

Name: 801624 NEX
Brand: Nexen
SKU: 801624 NEX
Price: 1,526.00 USD
Availability: OutOfStock

Nexen® Air Champ® 801624 Air Actuated/Spring Engaged NEMA C-Face Enclosed Combination Flange/Foot Mounted Clutch/Brake, 142 ft-lb Brake/232 in-lb Clutch Torque, 2.707 cu-in New/2.895 cu-in Worn Out Clutch, 1800 rpm Max, 80 psi Max Pressure

Manufacturer: Nexen

Manufacturer part number: 801624

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,526.00

Qty:

Product Details

Brand Name

Nexen®

Type

Air Actuated/Spring Engaged NEMA C-Face Enclosed

Description

FMCBES flange mounted clutch-brakes come with a spring engaged brake and air engaged clutch. For applications where safety is a concern, this unit will engage the brake in the event of air pressure loss. All units available in either electro less nickel plating or black oxide coating. Meets NEMA standard 1.26.5 (IP54) for waterproof machines. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 1.5 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated/Spring Engaged NEMA C-Face Enclosed, 142 ft-lb Brake/232 in-lb Clutch Torque, 2.707 cu-in New/2.895 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0.8755 in Bore, 32 to 150 deg F, Black Oxide, 7.81 in Dia x 8.81 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

Spring engaged brake with optional input shaft and feet

Specifications

Air Volume:	2.707 cu-in New/2.895 cu-in Worn Out Clutch
Bore Diameter:	0.8755 in
Dimensions:	7.81 in Dia x 8.81 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	142 ft-lb Brake/232 in-lb Clutch
