801658 NEX

Name: 801658 NEX
Brand: Nexen
SKU: 801658 NEX
Price: 2,568.00 USD
Availability: OutOfStock

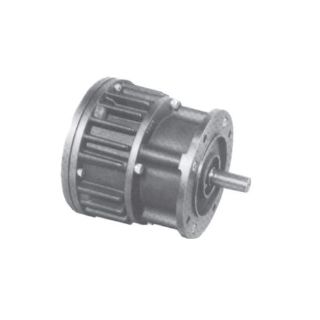

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

801658

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2,568.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Engaged NEMA C-Face Enclosed

Description

FMCBES flange mounted clutch-brakes come with a spring engaged brake and air engaged clutch. For applications where safety is a concern, this unit will engage the brake in the event of air pressure loss. All units available in either electro less nickel plating or black oxide coating. Meets NEMA standard 1.26.5 (IP54) for waterproof machines. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 1.5 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated/Spring Engaged NEMA C-Face Enclosed, 355 ft-lb Brake/390 in-lb Clutch Torque, 3.128 cu-in New/4.95 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1.1255 in Bore, 32 to 150 deg F, Nickel Plated, 9.62 in Dia x 10.59 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

Spring engaged brake with optional input shaft and feet

Specifications

Air Volume:	3.128 cu-in New/4.95 cu-in Worn Out Clutch
Bore Diameter:	1.1255 in
Dimensions:	9.62 in Dia x 10.59 in L
Finish:	Nickel Plated
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	355 ft-lb Brake/390 in-lb Clutch
