801709 NEX

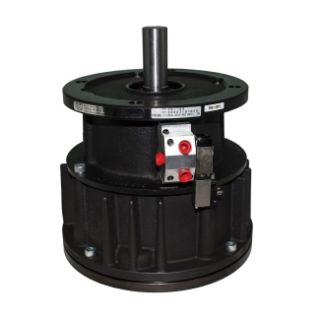

Name: 801709 NEX
Brand: Nexen
SKU: 801709 NEX
Price: 2,356.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

801709

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2,356.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated NEMA C-Face Enclosed

Description

Simplified one product number for a clutch-brake combination, control valve and locking key feature. Reduced number of air line connections for quicker install. Shorter air lines for better air pressure. Eliminates need for quick exhaust valves. 115 V is standard on FMCBE. The integral valve is available for 12, 24 and 115 V systems. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 2 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 685 ft-lb Brake/575 in-lb Clutch Torque, 3.05 cu-in New/4.377 cu-in Worn Out Brake, 2.61 cu-in New/3.738 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1.1255 in Bore, 32 to 150 deg F, Black Oxide, 9.62 in Dia x 10.59 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

Locking key feature reduces output keyway problems in high cycle rate applications
Air engaged, clutch brakes with optional input shaft and feet
Locking key output shafts can only be inserted into reducers and are not for pulley or coupling mounting

Specifications

Air Volume:	3.05 cu-in New/4.377 cu-in Worn Out Brake, 2.61 cu-in New/3.738 cu-in Worn Out Clutch
Bore Diameter:	1.1255 in
Dimensions:	9.62 in Dia x 10.59 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	685 ft-lb Brake/575 in-lb Clutch
