801716 NEX

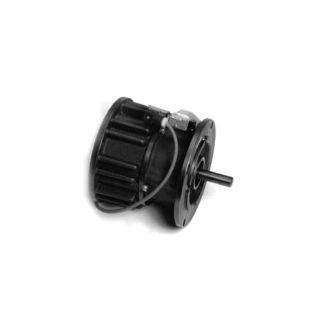

Picture of 801716 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
801716
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,741.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated NEMA C-Face Enclosed

Description

Simplified one product number for a clutch-brake combination, control valve and locking key feature. Reduced number of air line connections for quicker install. Shorter air lines for better air pressure. Eliminates need for quick exhaust valves. 115 V is standard on FMCBE. The integral valve is available for 12, 24 and 115 V systems. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 2 hp.
Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 1200 ft-lb Brake/1050 in-lb Clutch Torque, 5.802 cu-in New/7.747 cu-in Worn Out Brake, 3.109 cu-in New/4.657 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 32 to 150 deg F, Black Oxide

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

  • Locking key feature reduces output keyway problems in high cycle rate applications
  • Air engaged, clutch brakes with optional input shaft and feet
  • Locking key output shafts can only be inserted into reducers and are not for pulley or coupling mounting

Specifications

Air Volume:5.802 cu-in New/7.747 cu-in Worn Out Brake, 3.109 cu-in New/4.657 cu-in Worn Out Clutch
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Temperature Rating:32 to 150 deg F
Torque Rating:1200 ft-lb Brake/1050 in-lb Clutch
