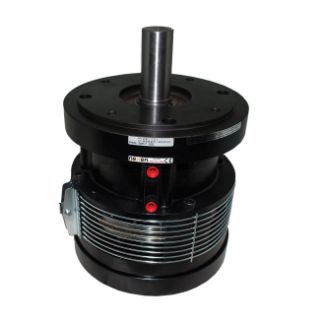

801731 NEX

The Nexen® flange mounted or foot mounted C-faced clutch-brake mounts directly to a 15 or 20 hp NEMA 254TC 256TC frame motor. The foot mounted unit allows for an offset motor for belt driven applications. Designed for controlled starts and stops, this rugged air engaged clutch-brake combines power with versatility. The single piston design prevents overlap between the clutch and the brake, while the open housing design allows for increased thermal horsepower producing superior clutch-brake performance.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Open, 2400 ft-lb Brake/2000 in-lb Clutch Torque, 6.79 cu-in New/9.312 cu-in Worn Out Brake, 4.303 cu-in New/7.158 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1-5/8 in Bore, 32 to 150 deg F, Black Oxide, 10 in Dia x 13.52 in L Dimensions
