801741 NEX

Name: 801741 NEX
Brand: Nexen
SKU: 801741 NEX
Price: 1,727.00 USD
Availability: OutOfStock

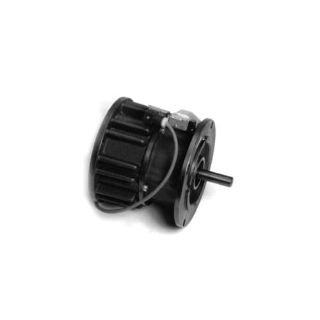

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

801741

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,727.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated NEMA C-Face Enclosed

Description

Simplified one product number for a clutch-brake combination, control valve and locking key feature. Reduced number of air line connections for quicker install. Shorter air lines for better air pressure. Eliminates need for quick exhaust valves. 115 V is standard on FMCBE. The integral valve is available for 12, 24 and 115 V systems. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 2 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 325 ft-lb Brake/290 in-lb Clutch Torque, 1.87 cu-in New/2.521 cu-in Worn Out Brake, 1.493 cu-in New/2.145 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0.8755 in Bore, 32 to 150 deg F, Black Oxide, 7.81 in Dia x 8.81 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

If mounted to a reducer and high cycle rates consider the locking-key version to prevent output shaft/keyway problems
Air engaged, clutch brakes with optional input shaft and feet

Specifications

Air Volume:	1.87 cu-in New/2.521 cu-in Worn Out Brake, 1.493 cu-in New/2.145 cu-in Worn Out Clutch
Bore Diameter:	0.8755 in
Dimensions:	7.81 in Dia x 8.81 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	325 ft-lb Brake/290 in-lb Clutch
