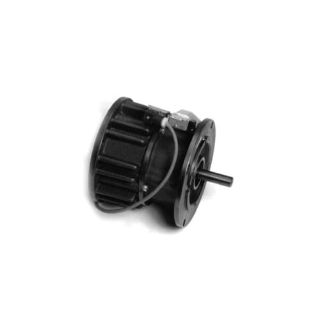

Actual Product May Vary From Image

801743 NEX

Name: 801743 NEX
Brand: Nexen
SKU: 801743 NEX
Price: 1,334.00 USD
Availability: OutOfStock

Nexen® Air Champ® 801743 Air Actuated NEMA C-Face Enclosed Combination Flange/Foot Mounted Clutch/Brake With Integral Control Valve, 210 ft-lb Brake/190 in-lb Clutch Torque, 1800 rpm Max, 80 psi Max Pressure

Manufacturer: Nexen

Manufacturer part number: 801743

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,334.00

Qty:

Product Details

Brand Name

Nexen®

Type

Air Actuated NEMA C-Face Enclosed

Description

Simplified one product number for a clutch-brake combination, control valve and locking key feature. Reduced number of air line connections for quicker install. Shorter air lines for better air pressure. Eliminates need for quick exhaust valves. 115 V is standard on FMCBE. The integral valve is available for 12, 24 and 115 V systems. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 2 hp.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 210 ft-lb Brake/190 in-lb Clutch Torque, 1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0.6255 in Bore, 32 to 150 deg F, Black Oxide, 6.5 in Dia x 7.61 in L Dimensions

Application

Starting, Stopping and Connect/Disconnect Applications

Standards

CE Certified | RoHS Compliant

Features

If mounted to a reducer and high cycle rates consider the locking-key version to prevent output shaft/keyway problems
Air engaged, clutch brakes with optional input shaft and feet

Specifications

Air Volume:	1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch
Bore Diameter:	0.6255 in
Dimensions:	6.5 in Dia x 7.61 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Temperature Rating:	32 to 150 deg F
Torque Rating:	210 ft-lb Brake/190 in-lb Clutch
