Name: 801812 NEX
Brand: Nexen
SKU: 801812 NEX
Availability: OutOfStock

801812 NEX

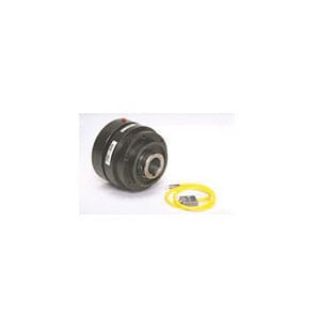

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

801812

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Nexen®

Type

Open

Description

Nexen® Torque Limiter, Open, Straight Bore, 5/8 in Bore Dia, 3.69 in Outside Dia, 4.22 in Overall Length, 3.33 to 30.416 ft-lb, 2000 rpm Maximum, 6.9 bar Maximum, 0.189 in Keyway, 25/45T, 35/30T, 40/24T, 50/20T Minimum Sprocket Teeth, Bare Machined Aluminum Air Chamber and Black Oxide Pilot

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted straight bore torque limiters
Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:	5/8 in
Bore Type:	Straight
Finish:	Bare Machined Aluminum Air Chamber and Black Oxide Pilot
Keyway Size:	0.189 in
Maximum Pressure:	6.9 bar
Maximum Speed:	2000 rpm
Minimum Sprocket Teeth:	25/45T, 35/30T, 40/24T, 50/20T
Outside Diameter:	3.69 in
Overall Length:	4.22 in
Torque Rating:	3.33 to 30.416 ft-lb
