Home / 801845 NEX

801845 NEX

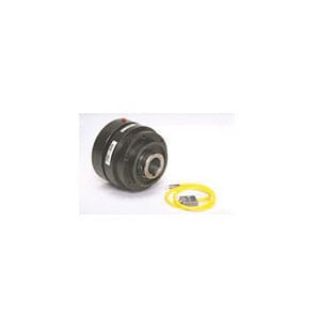

Picture of 801845 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
801845
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,058.00 / EA

Description

Brand Name

Nexen®

Type

Open

Description

Nexen® Torque Limiter, Open, Straight Bore, 1.438 in Bore Dia, 6.06 in Outside Dia, 6.09 in Overall Length, 75 to 349.16 ft-lb, 1350 rpm Maximum, 6.9 bar Maximum, 40/40T, 50/30T, 60/26T, 80/20T Minimum Sprocket Teeth, Bare Machined Aluminum Air Chamber and Black Oxide Pilot

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

  • Air engaged shaft mounted straight bore torque limiters
  • Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:1.438 in
Bore Type:Straight
Finish:Bare Machined Aluminum Air Chamber and Black Oxide Pilot
Maximum Pressure:6.9 bar
Maximum Speed:1350 rpm
Minimum Sprocket Teeth:40/40T, 50/30T, 60/26T, 80/20T
Outside Diameter:6.06 in
Overall Length:6.09 in
Torque Rating:75 to 349.16 ft-lb
