801924 NEX

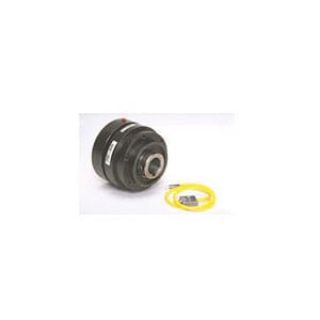

Picture of 801924 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
801924
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,353.00 / EA

Description

Brand Name

Nexen®

Type

Open

Description

Nexen® Torque Limiter, Open, Straight Bore, 1-1/4 in Bore Dia, 5.09 in Outside Dia, 5.36 in Overall Length, 13.33 to 66.66 ft-lb, 1650 rpm Maximum, 6.9 bar Maximum, 35/42T, 40/32T, 50/26T, 60/22T, 80/18T Minimum Sprocket Teeth, Bare Machined Aluminum Air Chamber and Black Oxide Pilot

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

  • Air engaged shaft mounted straight bore torque limiters
  • Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:1-1/4 in
Bore Type:Straight
Finish:Bare Machined Aluminum Air Chamber and Black Oxide Pilot
Maximum Pressure:6.9 bar
Maximum Speed:1650 rpm
Minimum Sprocket Teeth:35/42T, 40/32T, 50/26T, 60/22T, 80/18T
Outside Diameter:5.09 in
Overall Length:5.36 in
Torque Rating:13.33 to 66.66 ft-lb
