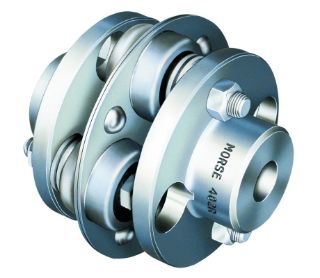

802 MORFLEX FLANGE 1-5/8 FB MOR

Name: 802 MORFLEX FLANGE 1-5/8 FB MOR
Brand: Regal Rexnord
SKU: 802 MORFLEX FLANGE 1-5/8 FB MOR
Price: 906.92 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

084416

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$906.92 / EA

Description

Brand Name

Morse®

Type

Finished Bore Round Flange

Description

The Morflex® coupling, a proven winner, can compensate for high angular misalignment and is torsionally flexible. Misalignment working angles range from 1.5 to 10 deg, making the Morflex® a unique resilient coupling.

Morse® Morflex® Flexible Coupling, Finished Bore Round Flange, 1-7/8 in Bore, 8 in OD, 8-1/4 in Overall Length, 3-3/4 in Dia Hub, 2.781 in Length Through Bore, 389 ft-lb Torque, 4400 rpm Maximum, 200 deg F, Zinc Plated

Application

For the Morflex® coupling are abundant, from small engines to fire truck pumps

Features

Size 802 coupling
Maintenance-free
Absorbs vibration thrust and torsional
Easy assembly
Up to 10 deg misalignment Resilient Design Absorbs Vibration Exposed and shrouded bolt configurations

Specifications

Bore Diameter:	1-7/8 in
Country of Origin:	TW\|CN
Finish:	Zinc Plated
Hub Size:	3-3/4 in Dia
Length Through Bore:	2.781 in
Maximum Speed:	4400 rpm
Outside Diameter:	8 in
Overall Length:	8-1/4 in
Temperature Rating:	200 deg F
Torque Rating:	389 ft-lb
