802892 NEX

Rewind operations require smooth, consistent torque to wind roll of all types of materials. Continuous slip applications also need clutches to efficiently dissipate heat. Nexen® tension control clutches, with closely held flatness and finish tolerances, combined with specific friction materials provide ultimate web tension control.

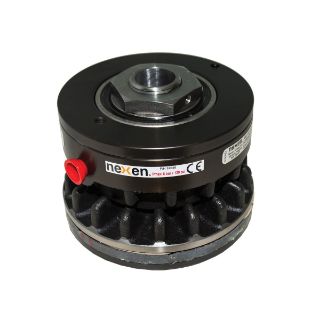

Nexen® Air Champ® Tension Control Clutch, Air Actuated/Spring Return Light Duty Open Single Actuator, 48 in-lb Dynamic Torque, 0.266 cu-in New/0.695 cu-in Worn Out Air Volume, 3600 rpm Maximum, 19 mm Bore, Black Oxide, 4.56 in OD x 4.75 in L Dimensions
