802942 NEX

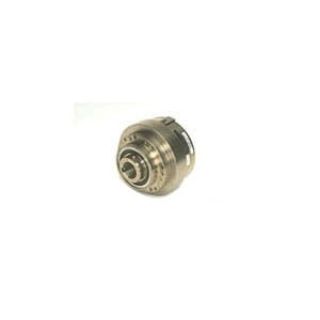

Picture of 802942 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
802942
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,588.00 / EA

Description

Brand Name

Nexen®

Type

Enclosed

Description

Nexen® Torque Limiter, Enclosed, Straight Bore, 1.938 in Bore Dia, 8.4 in Outside Dia, 6.4 in Overall Length, 137.5 to 901.66 ft-lb, 1000 rpm Maximum, 6.9 bar Maximum, 1/2 in Keyway, 40/48T, 50/38T, 60/32T, 80/25T, 100/21T Minimum Sprocket Teeth, Nickel Plated

Application

For connect/disconnect, shaft timing and torque limiting

Standards

CE Certified and RoHS Compliant

Features

  • Air engaged shaft mounted straight bore enclosed torque limiters
  • Now improved with Turck™ proximity sensor

Specifications

Bore Diameter:1.938 in
Bore Type:Straight
Finish:Nickel Plated
Keyway Size:1/2 in
Maximum Pressure:6.9 bar
Maximum Speed:1000 rpm
Minimum Sprocket Teeth:40/48T, 50/38T, 60/32T, 80/25T, 100/21T
Outside Diameter:8.4 in
Overall Length:6.4 in
Torque Rating:137.5 to 901.66 ft-lb
