803001A09M040 WOO

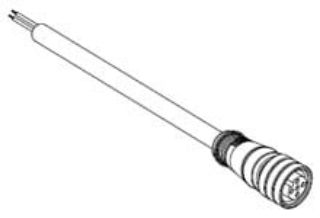

Picture of 803001A09M040 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
803001A09M040
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$42.09 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change®(M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Cordset, Single Ended, Series: 120065, 90 deg Female Connector, M12x1 Connector, PVC Connector, Braided Cable, 4 m Cable Length, PVC Cable, 3 Pole, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown Wire Pin, IP67 NEMA Rating

Application

Construction and Mining Equipment, Machine Lighting, Ground Vehicle Networks, Automated Assembly Equipment, Conveyor Systems and Material Handling

Standards

UL E152210 | CSA LR6837

Features

  • M12 design meets IEC specifications
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Watertight® panel mount design
  • 22 AWG yellow cable
  • Copper alloy contact, epoxy coat zinc die cast coupling nut, nitrile rubber O-ring, gold or palladium/nickel plating mating material
  • 0.23 in Dia cable
  • -20 to 105 deg C operating temperature

Specifications

Amperage Rating:4 A
Cable Length:4 m
Cable Material:PVC
Cable Type:Braided
Connector Material:PVC
Connector Size:M12x1
Connector Type:90 deg Female
Country of Origin:US
Keyway:Single
NEMA Rating:IP67
Number of Poles:3
Series:120065
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown
