803006A09M030 WOO

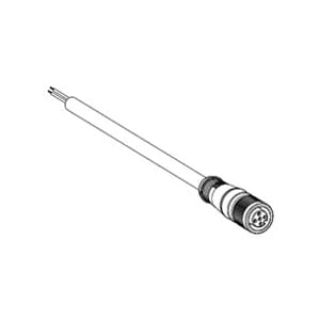

Picture of 803006A09M030 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
120065-1807
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26.72 / EA

Description

Brand Name

Woodhead®

Type

Single End

Description

Woodhead® Brad® Micro-Change® Cordset, Single End, Series: 120065, M12 Connector, PVC, 9.8 ft Cable Length, PVC Cable, 3 Poles, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown Wire Pin Colors, NEMA 6P/IP68

Standards

CSA LR6837 | RoHS Compliant | UL E152210

Features

  • 22 AWG 3 conductor yellow cable
  • Oil- and abrasion-resistant jacket
  • Highly reliable low-resistance contact design with gold/palladium nickel plating
  • Nylon 6/6 connector face and nitrile rubber o-ring
  • Straight male to pigtail connection
  • 0.22 in cable diameter

Specifications

Amperage Rating:4 A
Cable Length:9.8 ft
Cable Material:PVC
Connector Material:PVC
Connector Size:M12
Keyway:Single
NEMA Rating:NEMA 6P/IP68
Number of Poles:3
Series:120065
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown
