803006A09M100 WOO

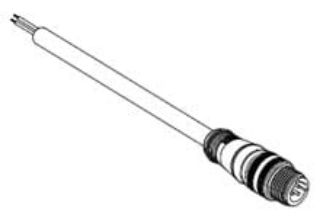

Picture of 803006A09M100 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
803006A09M100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$49.47 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) connectors are designed to withstand harsh industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Cordset, Single Ended, Series: 120065, Straight Male x Pigtail Connector, M12x1 Connector, PUR Connector, 32.81 ft Cable Length, PVC Cable, 3 Pole, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown/Yellow Wire Pin, NEMA IP67 NEMA Rating

Application

Construction and Mining Equipment, Machine Lighting, Ground Vehicle Networks, Automated Assembly Equipment, Conveyor Systems and Material Handling

Standards

CSA Certified File No. LR6837 | UL 2661 File No. E152210

Features

  • M12 design meets IEC specifications
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Watertight® panel mount design
  • 22 AWG yellow cable
  • Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, gold over nickel plating mating material
  • 0.18 in Dia cable
  • -20 to 105 deg C operating temperature

Specifications

Amperage Rating:4 A
Cable Length:32.81 ft
Cable Material:PVC
Connector Material:PUR
Connector Size:M12x1
Connector Type:Straight Male x Pigtail
Country of Origin:US
Keyway:Single
NEMA Rating:NEMA IP67
Number of Poles:3
Series:120065
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown/Yellow
