803P401 WOO

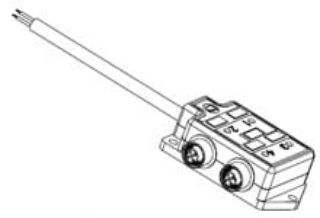

Picture of 803P401 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
803P401
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$561.93 / EA

Description

Brand Name

Brad®

Type

4 Port

Description

Brad® Micro-Change® Molded Junction Box, 4 Port, Series: 120115, 10 to 30 VDC, 4 A Port, 4 Pole, 3 Wires, IP67 Enclosure, Side Mounting, NEMA 6, PBT, 0.98 in Height, 2.42 in Width

Standards

RoHS Compliant

Features

  • Single keyway
  • Copper alloy metal, gold over nickel plating mating, PVC cable jacket
  • 4 port
  • -20 to 90 deg C temperature rating
  • Straight orientation
  • M12 bus input/output
  • Single I/O per port
  • PNP functional wiring
  • 5 m cable length
  • Molded cable

Specifications

Amperage Rating:4 A
Country of Origin:MX
Depth:2.42 in
Enclosure Type:IP67
Height:0.98 in
Material:PBT
Mounting Type:Side
NEMA Rating:NEMA 6
Number of Poles:4
Number of Wires:3
Series:120115
Voltage Rating:10 to 30 VDC
Width:2.42 in
