804000A09M020 WOO

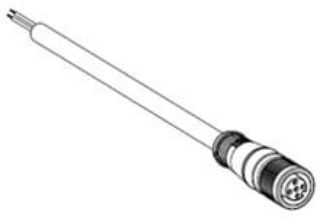

Brad® Micro-Change® Molex® 804000A09M020 120065 Single Ended Cordset, M12 Straight Female x Pigtail Connector, 2 m L Cable, 4 Poles, Single Keyway
Manufacturer: Molex/Woodhead
Manufacturer part number: 804000A09M020
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$40.61

Product Details

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) industry standard connectors are rugged, compact, sealed connectors used for sensor/actuator connectivity in industrial control applications. Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Molex® Cordset, Single Ended, Series: 120065, Straight Female x Pigtail Connector, M12 Connector, 22 AWG Cable, 2 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A

Application

For class 2 power and network circuit applications

Standards

CSA File No. LR6837 | RoHS Compliant | UL 2661 | UL File No. E258922 | UL File No. E152210

Features

  • This sensor cordset is designed to offer a quick alternative to hardwiring sensors and switches
  • M12 design meets IEC specifications
  • Industry standard interface compatible with a wide array of sensors and switches
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Harsh duty receptacle

Specifications

Amperage Rating:4 A
Cable Length:2 m
Cable Material:PVC
Cable Type:22 AWG
Connector Size:M12
Connector Type:Straight Female x Pigtail
Country of Origin:US
Keyway:Single
Number of Poles:4
Series:120065
Voltage Rating:250 VAC/VDC
