804000S20M050 WOO

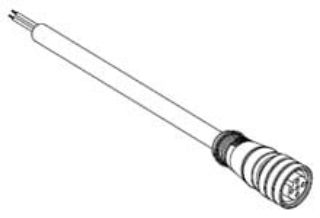

Picture of 804000S20M050 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
804000S20M050
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$64.52 / EA

Description

Brand Name

Brad®

Description

Micro-Change® connectors are designed to withstand harsh industrial environments and their superior quality assures a very reliable connection for control elements in automated equipment. These IEC 61076-2-101 compliant connectors allow fast and simple connections to 12 and 18 mm sensors, encoders, switches and other input and output devices in industrial machinery. Brad® complete line of M12 connectivity provides a quick-connect wiring system that eliminates field install cabinets and minimizes field wiring termination errors.
Brad® Micro-Change® Cordset, Series: 120006, Straight Female Connector, M12 Connector, SJTO Cable, 5 m Cable Length, 4 Poles, Single/Dual Keyway, 250 VAC/VDC, 4 A, IEC 61076-2-101 IEC Rating, NEMA 6P/IP67/IP68

Features

  • Industry standard interface compatible with a wide array of sensors and switches
  • Gold over palladium/nickel plating design

Specifications

Amperage Rating:4 A
Cable Length:5 m
Cable Type:SJTO
Connector Size:M12
Connector Type:Straight Female
Country of Origin:US
IEC Rating:IEC 61076-2-101
Keyway:Single/Dual
NEMA Rating:NEMA 6P/IP67/IP68
Number of Poles:4
Series:120006
Voltage Rating:250 VAC/VDC
