804001D09M1008 WOO

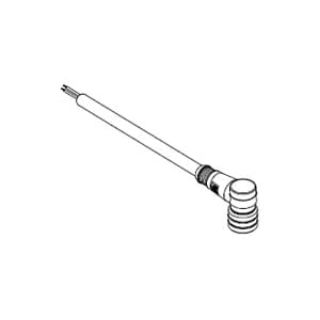

Picture of 804001D09M1008 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
130042-0035
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Woodhead®

Type

Single End

Description

Woodhead® Brad® Micro-Change® Cordset, Single End, Series: 130042, Female x Pigtail Connector, M12 Connector, PVC, Shielded Cable, 32.8 ft Cable Length, PVC Cable, 4 Poles, Single Keyway, 250 VAC, 4 A, 90 deg, Blue/Brown Wire Pin Colors, NEMA IP67

Standards

CSA LR6837 | RoHS Compliant | UL E152210

Features

  • 18 AWG orange cable
  • Oil- and abrasion-resistant jacket
  • Highly reliable low-resistance contact design with gold/palladium nickel plating
  • Gold over nickel plated mating and nitrile rubber o-ring
  • -40 to 105 deg C
  • 0.29 in cable diameter
  • Copper alloy contact
  • 316 stainless steel coupling nut
  • Stainless steel coupler

Specifications

Amperage Rating:4 A
Angle:90 deg
Cable Length:32.8 ft
Cable Material:PVC
Cable Type:Shielded
Connector Material:PVC
Connector Size:M12
Connector Type:Female x Pigtail
Keyway:Single
NEMA Rating:NEMA IP67
Number of Poles:4
Series:130042
Voltage Rating:250 VAC
Wire Pin Colors:Blue/Brown
