804001K05M100 WOO

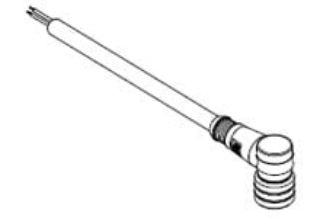

Picture of 804001K05M100 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
804001K05M100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$102.55 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Woodhead® Cordset, Single Ended, Series: 120065, 90 deg Female x Straight Pigtail Connector, M12x1 Connector, TPU Connector, 22 AWG PLTC-ER Cable, 10 m Cable Length, TPE Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Blue/Brown/White Wire Pin

Application

Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment and Pick and Place Robots

Standards

CE Marked | CSA File No. LR6837 | UL File No. E152210

Features

  • M12 design meets IEC specifications
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight panel mount design
  • Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, gold over nickel plating mating material

Specifications

Amperage Rating:4 A
Cable Length:10 m
Cable Material:TPE
Cable Type:22 AWG PLTC-ER
Connector Material:TPU
Connector Size:M12x1
Connector Type:90 deg Female x Straight Pigtail
Country of Origin:MX
Keyway:Single
Number of Poles:4
Series:120065
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Blue/Brown/White
