Actual Product May Vary From Image

804006A09M060 WOO

Name: 804006A09M060 WOO
Brand: Molex/Woodhead
SKU: 804006A09M060 WOO
Price: 36.08 USD
Availability: OutOfStock

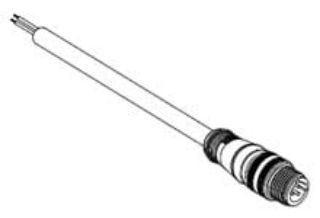

Brad® Micro-Change® 804006A09M060 120065 Single Ended Threaded Cordset, M12 Straight Male x Pigtail Connector, 6 m L Cable, 4 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 804006A09M060

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$36.08

Qty:

Product Details

Brand Name

Brad®

Type

Single Ended Threaded

Description

Micro-Change® connectors are designed to withstand harsh industrial environments and their superior quality assures a very reliable connection for control elements in automated equipment. These IEC 61076-2-101 compliant connectors allow fast and simple connections to 12 and 18 mm sensors, encoders, switches and other input and output devices in industrial machinery. Brad® complete line of M12 connectivity provides a quick-connect wiring system that eliminates field install cabinets and minimizes field wiring termination errors.

Brad® Micro-Change® Cordset, Single Ended Threaded, Series: 120065, Straight Male x Pigtail Connector, M12 Connector, PUR, 6 m Cable Length, PVC Cable, 4 Poles, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown/White Wire Pin Colors, IEC 61076-2-101 IEC Rating, NEMA 6/IP67

Features

Patented anti-vibration feature to prevent loosening under high vibration applications
Wide selection of cables to fit applications
Without LED indicator

Specifications

Amperage Rating:	4 A
Cable Length:	6 m
Cable Material:	PVC
Connector Material:	PUR
Connector Size:	M12
Connector Type:	Straight Male x Pigtail
Country of Origin:	MX
IEC Rating:	IEC 61076-2-101
Keyway:	Single
NEMA Rating:	NEMA 6/IP67
Number of Poles:	4
Series:	120065
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Blue/Brown/White
