804006A09M100 WOO

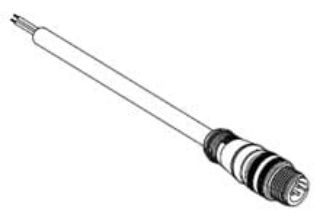

Picture of 804006A09M100 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
804006A09M100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$61.85 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Woodhead® Cordset, Single Ended, Series: 120065, Straight Male x Pigtail Connector, M12x1 Connector, Polyurethane Connector, 22 AWG Cable, 10 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown/White Wire Pin

Application

Construction and Mining Equipment, Machine Lighting, Ground Vehicle Networks, Automated Assembly Equipment, Conveyor Systems and Material Handling

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661

Features

  • M12 design meets IEC specifications
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Watertight panel mount design
  • Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, gold over nickel plating mating material

Specifications

Amperage Rating:4 A
Cable Length:10 m
Cable Material:PVC
Cable Type:22 AWG
Connector Material:Polyurethane
Connector Size:M12x1
Connector Type:Straight Male x Pigtail
Country of Origin:MX
Keyway:Single
Number of Poles:4
Series:120065
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown/White
