806001 NEX

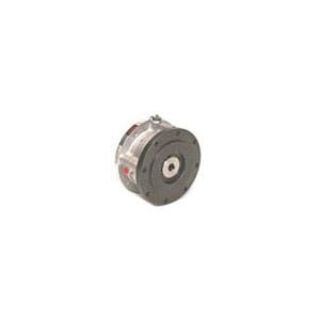

Picture of 806001 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
806001
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,183.00 / EA

Description

Brand Name

Nexen®

Type

Spring Actuated/Air Released Standard Coefficient

Description

Nexen® NEMA Motor Flange/Foot Mount Friction Brake, Spring Actuated/Air Released Standard Coefficient, Series: SE-200, 225 in-lb Static Torque, 78.4 cu-in New/16.2 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 20 mm Bore, 32 to 150 deg F, Black Oxide

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Spring engaged NEMA C-face or shaft or flange or foot mounted brake with manual release

Specifications

Air Volume:78.4 cu-in New/16.2 cu-in Worn Out
Bore Diameter:20 mm
Country of Origin:US
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:SE-200
Temperature Rating:32 to 150 deg F
Torque Rating:225 in-lb Static
