Home / 808204 NEX

808204 NEX

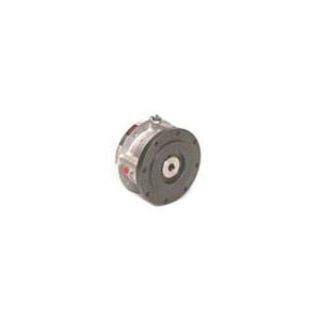

Picture of 808204 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
808204
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,949.00 / EA

Description

Brand Name

Nexen®

Type

Spring Actuated/Air Released Standard Coefficient

Description

Nexen® NEMA Motor Flange/Foot Mount Friction Brake, Spring Actuated/Air Released Standard Coefficient, Series: SE-500, 575 in-lb Static Torque, 78.4 cu-in New/16.2 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1 in Bore, 32 to 150 deg F, Black Oxide, 9 in OD x 5.97 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Spring engaged NEMA C-face or shaft or flange or foot mounted brake with manual release

Specifications

Air Volume:78.4 cu-in New/16.2 cu-in Worn Out
Bore Diameter:1 in
Country of Origin:US
Dimensions:9 in OD x 5.97 in L
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:SE-500
Temperature Rating:32 to 150 deg F
Torque Rating:575 in-lb Static
