Actual Product May Vary From Image

80HTR50 UST

Name: 80HTR50 UST
Brand: US Tsubaki
SKU: 80HTR50 UST
Price: 90.03 USD
Availability: OutOfStock

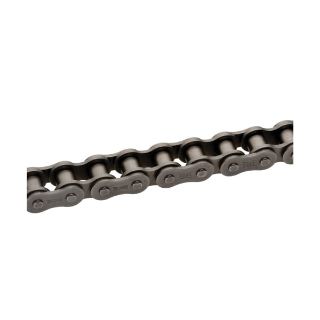

Tsubaki® 80HTR50 HT Series Drive Chain, 50 ft OAL, 1 in Pitch, 5/8 in Dia x 5/8 in W Roller

Manufacturer: US Tsubaki

Manufacturer part number: 80HTR50

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$90.03

Qty:

Product Details

Brand Name

Tsubaki®

Description

HT Series chains have a greater ultimate tensile strength (plus 15-30%) than ASME/ANSI standard roller chains by using thru hardened pins and link plates of the next larger chain size. These chains also provide greater shock load resistance. The dimensions of the chains are identical to those of the ASME/ANSI Heavy Series standard roller chains.

Tsubaki® Drive Chain, Series: HT Series, 1 in Pitch, 0.312 in Pin Dia, 5/8 in Roller Dia, 5/8 in Roller Width, 0.949 in Plate Height, 0.156 in Plate Thickness, 1 Strand, 20900 lb Tensile, 50 ft Overall Length

Standards

ANSI 80

Features

Riveted pin construction

Includes

Press Fit Connection Link

Specifications

Country of Origin:	CN
Number of Strands:	1
Overall Length:	50 ft
Pin Diameter:	0.312 in
Pitch:	1 in
Plate Height:	0.949 in
Plate Thickness:	0.156 in
Roller Diameter:	5/8 in
Roller Width:	5/8 in
Series:	HT Series
Tensile Strength:	20900 lb
