80W07-D LEV

Name: 80W07-D LEV
Brand: Leviton
SKU: 80W07-D LEV
Price: 329.22 USD
Availability: OutOfStock

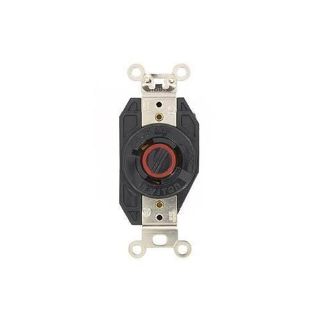

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton

Manufacturer part number:

80W07-D

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$329.22 / EA

Description

Brand Name

Leviton®

Type

Duplex Outlet Non-Grounding

Description

Leviton®, 80W07-D, Straight Blade Receptacle, Duplex Outlet Non-Grounding, 125/250 VAC, 15/10 A, 3 Pole, 3 Wires, Industrial Grade, IP66 Enclosure, -40 to 60 deg C, Screw Terminal, Valox Polybutylene Terephthalate, Yellow, 4.63 in H x 4.63 in W x 2.9 in D Dimensions

Standards

ANSI C-73 | UL 498 | CSA C22.2 NO 42 | NOM 057 | Flammability V-2 per UL 94 Rated

Features

Dielectric voltage - withstands 2000 V per UL498
Full rated current limiting
Max 30 deg C temperature rise after 250 cycles OL at 200% rated current
Valox PBT wiring module mounting cup
Nylon wiring module
Santoprene TPV cover gasket
Stainless steel torsion spring mechanism
Electroless nickel-coated brass blades/contacts, terminal clamps and terminal screws
Stainless steel, non-magnetic mounting and assembly screws
Corrosion-resistant

Specifications

Amperage Rating:	15/10 A
Color:	Yellow
Country of Origin:	CN
Dimensions:	4.63 in H x 4.63 in W x 2.9 in D
Enclosure:	IP66
Grade:	Industrial
Material:	Valox Polybutylene Terephthalate
Number of Poles:	3
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125/250 VAC
