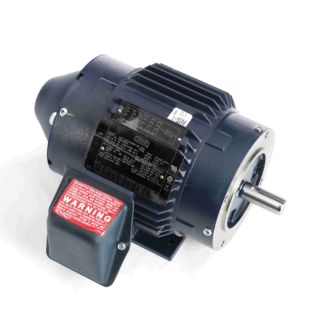

810548.00 LEE

Name: 810548.00 LEE
Brand: Leeson Electric
SKU: 810548.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

810548.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Inverter Ready Special Features, 1 hp, 230/460 VAC, 3/1.5 A, 60 Hz Frequency, 3 ph ph, 1756 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 143TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 3 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, Cast Iron, 10:1 Variable Torque Speed, 13.68 in L x 11.03 in W Dimensions

Application

Inverters, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	3/1.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.68 in L x 11.03 in W
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	143TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class H
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1756 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
