811555.00 LEE

Name: 811555.00 LEE
Brand: Leeson Electric
SKU: 811555.00 LEE
Availability: OutOfStock

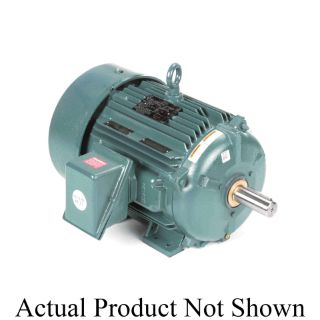

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

811555.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Severe Duty Motors Special Features, 15 hp, 460 VAC, 18.8 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254T Frame, 1.63 in Dia x 4 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 44.4 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 23.52 in L x 19.16 in W x 14.08 in H Dimensions

Application

Refineries, Above Ground Mines, Foundries, Paper and Pulp Mills, Cement Plants, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	18.8 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	23.52 in L x 19.16 in W x 14.08 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	254T
Frequency Rating:	60 Hz
Horsepower:	15 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.63 in Dia x 4 in L
Speed:	1775 rpm
Temperature Rating:	40 deg C
Torque Rating:	44.4 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
