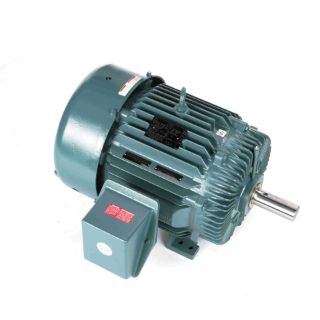

811563.00 LEE

Name: 811563.00 LEE
Brand: Leeson Electric
SKU: 811563.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

811563.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Severe Duty Motors Special Features, 40 hp, 460 VAC, 47.5 A, 60 Hz Frequency, 3 ph ph, 1780 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 324T Frame, 2.13 in Dia x 5.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 118 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 30.37 in L x 26.05 in W x 20.22 in H Dimensions

Application

Refineries, Above Ground Mines, Foundries, Paper and Pulp Mills, Cement Plants, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	47.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	30.37 in L x 26.05 in W x 20.22 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	324T
Frequency Rating:	60 Hz
Horsepower:	40 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.13 in Dia x 5.25 in L
Speed:	1780 rpm
Temperature Rating:	40 deg C
Torque Rating:	118 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
