811643.00 LEE

Name: 811643.00 LEE
Brand: Leeson Electric
SKU: 811643.00 LEE
Availability: OutOfStock

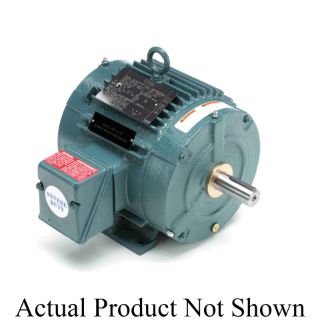

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

811643.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Severe Duty Motors Special Features, 1.5 hp, 460 VAC, 2.3 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 11.43 in L x 10.79 in W x 7.45 in H Dimensions

Application

Refineries, Above Ground Mines, Foundries, Paper and Pulp Mills, Cement Plants, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	2.3 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.43 in L x 10.79 in W x 7.45 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
