8122-448-003 THO

Name: 8122-448-003 THO
Brand: Thomson Industries
SKU: 8122-448-003 THO
Availability: OutOfStock

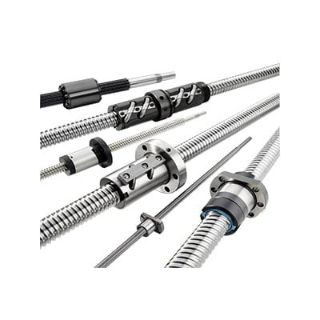

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

8122-448-003

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Double Preloaded

Description

Preloaded ball nuts should be considered to eliminate backlash and increase system stiffness in applications where multi-directional positional accuracy and repeatability are required. Preloaded ball nuts consist of two non-preloaded ball nuts (round or square) joined by an adjustable preload package with springs. This design allows ease of setup and adjust of preload based on application requirements.

Thomson® Ball Nut, Double Preloaded, Series: MAR Legacy, 2-1/4 in Screw Diameter, 2 Circuits, 3.137-12 Thread, Right Thread, 1/2 in Thread Lead, 17370 lb Dynamic/159220 lb Static Load, For Use With: MAR Legacy Screw, Steel

Standards

RoHS Compliant

Features

Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
300 deg F operating temperature
Nut only, screw sold separately

Includes

Integral Wiper

Specifications

Country of Origin:	US
Load Capacity:	17370 lb Dynamic/159220 lb Static
Material:	Steel
Number of Circuits:	2
Screw Diameter:	2-1/4 in
Series:	MAR Legacy
Suitable For Use With:	MAR Legacy Screw
Thread Direction:	Right
Thread Lead:	1/2 in
Thread Size:	3.137-12
