Home / 81400161 REX

81400161 REX

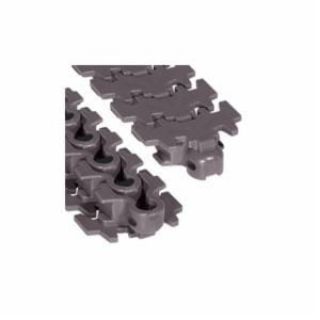

Picture of 81400161 REX
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
81400161
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$32.35 / EA

Description

Brand Name

Rexnord®

Type

Multi-Flex

Description

1757 series chains are 1-1/2 in pitch and have a top plate thickness of 0.19 in. Solid top chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Features TAB curve retention. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 1757 series sprockets for true chain/sprocket interaction.
Rexnord® TableTop® Flat Top Conveyor Chain, Multi-Flex, Series: 1757, 1-1/2 in Pitch, 0.28 in Pin Diameter, 1.63 in Pin Length, 3-1/4 in Plate Width, 0.19 in Plate Thickness, 6 in Minimum Side-Flex Radius, 4 in Minimum Back-Flex Radius, 390 lb Tensile Strength, 10 ft Overall Length, Acetal, Tan

Application

Food Processing, Beverage, Unit Handling and Industrial Applications

Standards

FDA 21 CFR 177

Features

  • Engineered for a wide range of conveyor applications for many industries
  • Reduce container tipping and jams at transfer points
  • Side-flexing options for ease of installation, reduced floor space
  • TableTop® chain for high-strength and high-speed applications
  • Low-friction patented blend of acetal that provides good wear resistance and long service life due to the low coefficient of friction

Specifications

Finish:Tan
Material:Acetal
Minimum Back-Flex Radius:4 in
Minimum Side-Flex Radius:6 in
Overall Length:10 ft
Pin Diameter:0.28 in
Pin Length:1.63 in
Pitch:1-1/2 in
Plate Thickness:0.19 in
Plate Width:3-1/4 in
Series:1757
Tensile Strength:390 lb
