81415811 REX

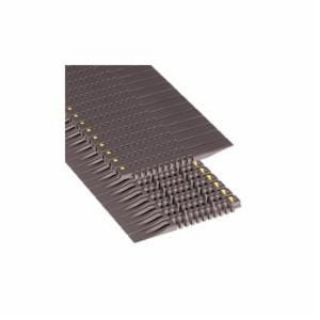

Picture of 81415811 REX
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
81415811
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$52.42 / FT

Description

Brand Name

Rexnord®

Type

Molded-To-Width Straight Running

Description

8500 series chains are 3/4 in pitch and are 0.34 in H. Chains with the Dynamic Transfer System (DTS) eliminate the "dead plate" in 90 deg product transfers. This creates a "live" transfer eliminating stranded products and improves product stability. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 8500 series sprockets for true chain/sprocket interaction.
Rexnord® MatTop® Conveyor Chain, Molded-To-Width Straight Running, Series: 8500, 3/4 in Pitch, 4-1/2 in Plate Width, 0.34 in Plate Thickness, 1 in Minimum Back-Flex Radius, 360 lb Tensile Strength, 10 ft Overall Length, Acetal, Brown

Application

Food Processing, Beverage, Unit Handling and Industrial Applications

Standards

FDA 21 CFR 177

Features

  • Engineered for a wide range of conveyor applications for many industries
  • Continuous conveying surface for greater-width-requirement MatTop® chain applications
  • Reduce container tipping and jams at transfer points
  • Straight-running for ease of installation, reduced floor space
  • HP™ high-performance material patented blend of acetal specifically formulated for dry-running conveyors due to excellent friction characteristics

Includes

Left Hand Dynamic Transfer Systemâ„¢ and Positrackâ„¢ Tracking Guides

Specifications

Finish:Brown
Material:Acetal
Minimum Back-Flex Radius:1 in
Overall Length:10 ft
Pitch:3/4 in
Plate Thickness:0.34 in
Plate Width:4-1/2 in
Series:8500
Tensile Strength:360 lb
