8200-SGW LEV

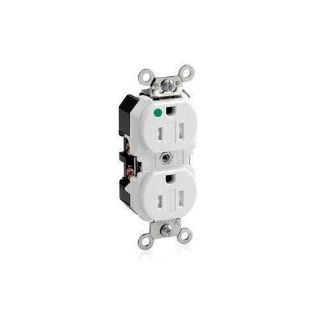

Picture of 8200-SGW LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
8200-SGW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$43.32 / EA

Description

Brand Name

Leviton®

Type

1-Phase Duplex Extra Heavy Duty Tamper Resistant

Alternate Supplier #

Grainger - 3VA86

Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Leviton®, 8200-SGW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.55 in W x 1.21 in D Dimensions

Standards

NEMA WD-1/WD-6 | ANSI C-73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL Federal Specification WC596 File No. E13399 | UL 498HG File No. E13399 | UL Listed | CSA Certified | UL94 V-2 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Four corner latches securely fasten face
  • Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
  • High performance brass #10-32 terminal screws to reduce conductor oxidation
  • Back and side wire ground termination brass strap version
  • Back and side wiring options
  • Break-OFF tabs allow easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
  • Wallbox mounting
  • Self-grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Nickel plated steel strap
  • 14 to 10 AWG wire terminal
  • 8-hole feed-through wired termination
  • Tamper resistant

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:MX
Dimensions:46 in H x 1.55 in W x 1.21 in D
Grade:Extra Heavy Duty/Hospital
Horsepower:1/2 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
