8200WTR HWD

Name: 8200WTR HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 8200WTR HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

8200WTR

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Duplex Self-Grounding

Description

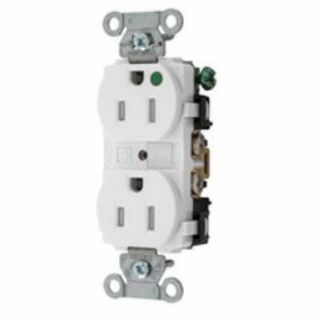

Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, Duplex Self-Grounding, Series: 8200, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, White, 3.28 in H x 1.57 in W x 1.15 in D Dimensions

Standards

UL 498, UL File No. E2186 | CSA C22.2 No. 42 | CSA File No. 285 | Federal Specification WC596 | NEMA WD-6, UL 94 V2

Features

Triple wipe contacts
High impact resistant face with circuit ID marking area
Steel mounting strap
Smooth nylon face and PBT base
Brass power and ground contacts
Plated steel clamping plate
Galvanized steel mounting strap
Stainless steel automatic self-grounding staple
Zinc plated steel mounting screws
Certified for current interrupting at full rated current
Withstands 2000 VAC minimum dielectric voltage
14 to 10 AWG copper stranded or solid conductor only terminal accommodation
Terminals identified in accordance with UL 498 and CSA
Tamper-resistant shutter complies with national electrical code requirements

Specifications

Amperage Rating:	15 A
Color:	White
Country of Origin:	US
Dimensions:	3.28 in H x 1.57 in W x 1.15 in D
Grade:	Hospital
Horsepower:	1/2 hp
Material:	Nylon
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Series:	8200
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
