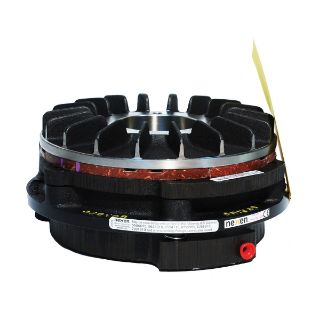

Name: 822496 NEX
Brand: Nexen
SKU: 822496 NEX
Price: 1,907.00 USD
Availability: OutOfStock

822496 NEX

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

822496

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,907.00 / EA

Description

Brand Name

Nexen®

Type

Spring Actuated/Air Released High Coefficient

Description

Nexen® Shaft Mount Friction Brake, Spring Actuated/Air Released High Coefficient, Series: TSE-800, 2500 in-lb Static Torque, 7.5 cu-in New/3.5 cu-in Worn Out Air Volume, 1800 rpm Maximum, 95 psi Maximum, 1/2 to 2-1/8 in Bore, 32 to 150 deg F, Black Oxide, 9 in OD x 4.75 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Spring engaged shaft mounted tapered bore brake

Specifications

Air Volume:	7.5 cu-in New/3.5 cu-in Worn Out
Bore Diameter:	1/2 to 2-1/8 in
Country of Origin:	US
Dimensions:	9 in OD x 4.75 in L
Finish:	Black Oxide
Maximum Pressure:	95 psi
Maximum Speed:	1800 rpm
Series:	TSE-800
Temperature Rating:	32 to 150 deg F
Torque Rating:	2500 in-lb Static
