Home / 822510 NEX

822510 NEX

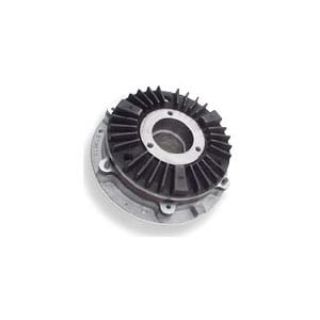

Picture of 822510 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
822510
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,646.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Standard Coefficient

Description

Nexen® Shaft Mount Friction Brake, Air Actuated/Spring Released Standard Coefficient, Series: T-1200, 5500 in-lb Static Torque, 2.764 cu-in New/11.298 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 7/8 to 2-7/8 in Bore, 32 to 150 deg F, Black Acrylic Paint, 13.76 in OD x 5.22 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted tapered bore brake

Specifications

Air Volume:2.764 cu-in New/11.298 cu-in Worn Out
Bore Diameter:7/8 to 2-7/8 in
Country of Origin:US
Dimensions:13.76 in OD x 5.22 in L
Finish:Black Acrylic Paint
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:T-1200
Temperature Rating:32 to 150 deg F
Torque Rating:5500 in-lb Static
